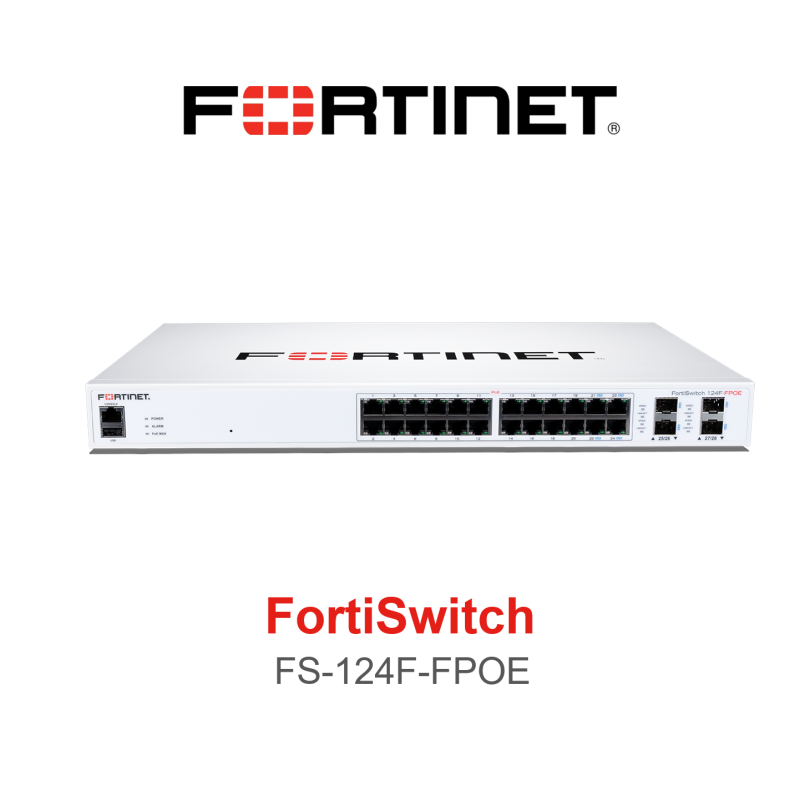

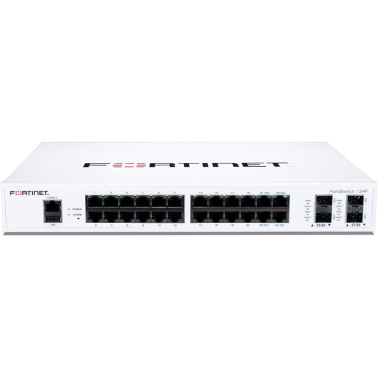

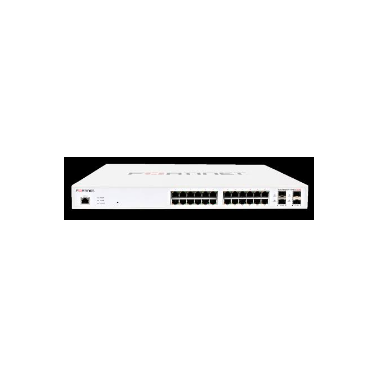

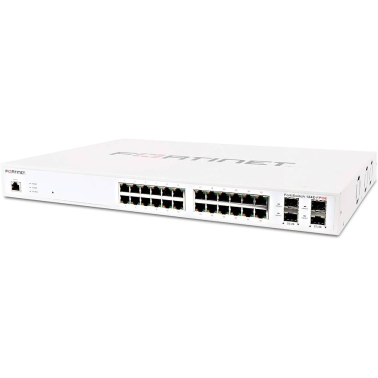

FORTISWITCH 124F-FPOE L2 avec 24 ports GE RJ45 + 4 SFP

FORTISWITCH 124F-FPOE L2 avec 24 ports GE RJ45 + 4 SFP

12 295,00 Dhs HT
14 754,00 Dhs TTC

Commutateur PoE+ compatible avec contrôleur de commutateur FortiGate de couche 2

avec 24 ports GE RJ45 POE + 4 ports SFP

avec une limite maximale de 370W et contrôle intelligent de la température du ventilateur

Marque

FORTINET FS-124F-FPOE
Quantité

Comparer

Description

Caractéristiques

FortiSwitch 124F FortiSwitch 124F-POE FortiSwitch 124F-FPOE
Hardware Specifications
Total Network Interfaces 24x GE RJ45 and 4x 10GE SFP+ 24x GE RJ45 and 4x 10GE SFP+ 24x GE RJ45 and 4x 10GE SFP+
Dedicated Management 10/100 Port 0 0 0
RJ-45 Serial Console Port 1 1 1
Form Factor 1 RU Rack Mount 1 RU Rack Mount 1 RU Rack Mount
Power over Ethernet (PoE) Ports 0 12 (802.3af/at) 24 (802.3af/at)
PoE Power Budget 0 185 W 370 W
Mean Time Between Failures > 10 years > 10 years > 10 years
System Specifications
Switching Capacity (Duplex) 128 Gbps 128 Gbps 128 Gbps
Packets Per Second (Duplex) 190 Mpps 190 Mpps 190 Mpps
MAC Address Storage 32 K 32 K 32 K
Network Latency < 1µs < 1µs < 1µs
VLANs Supported 4 K 4 K 4 K
Link Aggregation Group Size 8 8 8
Total Link Aggregation Groups 128 128 128
Packet Buffers 2 MB 2 MB 2 MB
DRAM 512 MB DDR3 512 MB DDR3 512 MB DDR3
FLASH 64 MB 64 MB 64 MB
Hardware Specifications
Height x Depth x Width (inches) 1.73 x 9.06 x 12.99 1.73 x 10.24 x 12.99 1.73 x 10.24 x 12.99
Height x Depth x Width (mm) 44 x 230 x 330 44 x 260 x 330 44 x 260 x 330
Weight 4.48 lbs (2.03 kg) 7.85 lbs (3.56 kg) 8.42 lbs (3.82 kg)
Hardware Specifications
Power Required 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Power Supply AC Built in AC Built in AC Built in
Redundant Power — — —
Power Consumption (Average / Maximum) 24.8 W / 26.3 W 235.9 W / 237.4 W 449.8 W / 451.3 W
Heat Dissipation 89.683 BTU/h 809.534 BTU/h 1538.933 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -4–158°F (-40–70°C) -4–158°F (-40–70°C) -4–158°F (-40–70°C)
Humidity 10–90% non-condensing 10–90% non-condensing 10–90% non-condensing
Air-Flow Direction side-to-back side-to-back side-to-back
Certification and Compliance
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Détails du produit

FORTINET FS-124F-FPOE
